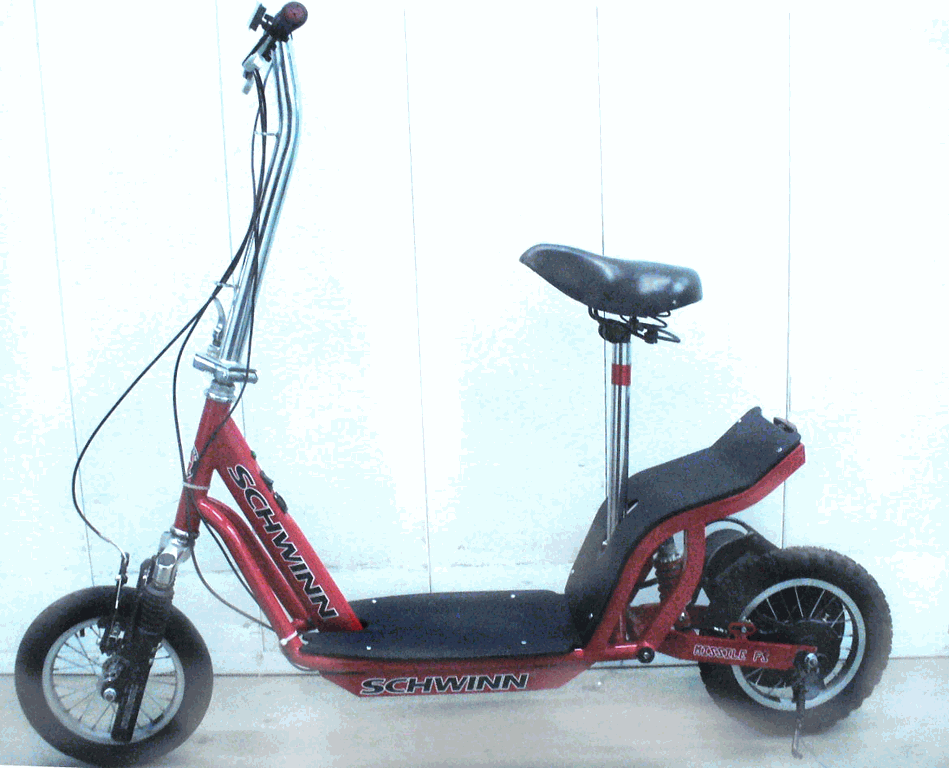

Schwinn Missile

ELECTRIC SCOOTER

Index

Specifications

Speed: 17 mph

Range: 8-10 miles

Motor: The 450 Watt Exclusive Finned Hi-Torque Electro Drive is a fully sealed, dust and weather resistant 24-volt brushless DC motor with built-in electronic pulse width modulated (PWM) controller that includes low voltage battery protection, motor overheat protection, stall protection, peak amperage protection, maximum speed protection and brake inhibit so you cant break and throttle at the same time.

Frame: Hi-Tensile steel and incorporates a one piece folding handlebar with steel battery box. On - Off switch and charger port on are located on down tube console for easy access. One piece alloy deck with molded kick tail

Drive System: Currie Electro Drive System &endash; All weather direct chain drive, power on demand variable speed thumb throttle, freewheeling clutch for easy coasting.

Battery: Dual 12-volt, 10-amp hour sealed recyclable lead acid batteries in a steel box frame mounted battery pack.

Charge Time: 4 - 6 hours

Battery Charger: 2 AMP smart charger, 110V AC input, self-regulated &endash;Fast charger available

Brakes: Alloy 3-finger MTB style lever & Rear 90mm band brake

Fork: 12" suspension, spring and elastomer type with 70mm of travel.

Frame: new rectangular tube full suspension hi-ten full sized 12" scooter frame with rear mono-shock swingarm suspension with coil spring over shock dampening, steel battery box, and downtube console.

Weight: 75 lbs.

Dimensions: Length 50", Deck Width 9" and Height 46 (adjustable)

Dimensions (folded) : Height 25"

Carrying Capacity: 250 lbs.

• Tires: Kenda K-909 12 x 2.125 black street tires with thorn resistant tubes

Battery: 24V, 2 of 12v-10ah Battery
